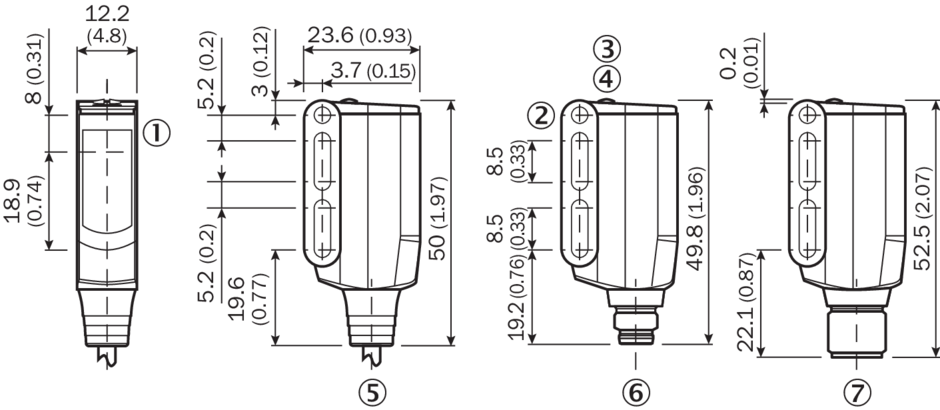

Dimensions in mm (inch)

① Sender and receiver optical axis center

② Mounting hole M3 (Ø 3.1 mm)

③ LED indicator yellow: Status of received light beam

④ LED indicator green: power on

⑤ Connecting cable or connector

⑥ male connector M8, 4-pin

⑦ male connector M12, 4-pin
